Karman Gold AlNiCo 2 Humbucker Pickup

Karman pickups are high-quality pickups that come to the consumer at an affordable price, now you can upgrade your entry-level standard guitar pickups with something that sounds great without breaking the bank.

Karman Alnico 2 humbucker pickups are a versatile P.A.F type humbucker. Great for country, jazz, blues, funk, classic rock and heavy rock. Warm and crystalline clean tones. The bridge is slightly overwound for better balance.

Available in either vintage braided output wire or 4 cord wire. The 4 cord wires allow you to coil split the pickup into a single coil by grounding the red and white wires via a push pull pot or a toggle switch. If you do not wish to coil split then just ignore the red and white wires (we recommend putting a piece of tape around them) and connect the BLACK wire to your switch/volume and the GREEN wire to ground. The bare wire must go to ground with the green since this will act as shielding around the 4 other wires.

If you choose the braided wire option, you not only have the aesthetic look of a vintage pickup under the hood, but you can also bend the wires where you want them and they will stay in place due to it being rigid. This makes a cleaner looking electronic assembly when you open your guitar up to appreciate its inner beauty. We recommend running the wire over your volume pot and “tacking” the outside braid to the top of the pot for grounding and then inner hot wire gets connected to the switch or hot lug on volume pot, depending on your wiring layout.

Model Number: LPA2

Base and Cover Material Base: Brass

Cover: Gold plated brass

String spacing Neck: 50mm

Bridge: 52mm

Pole Style: Gold plated adjustable screws

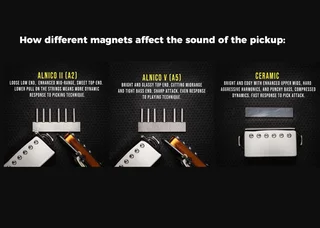

Magnet material: Alnico 2

Output N: 7.5K

3.5H (Inductance)

B: 8.4K

4.5H (Inductance)

Output wire: 1 Cord Braided Shield Wire

Outer shield is ground, inside wire is hot

OR

4 Cord ABS wiring with Coil Splitting abilities.

Inside bobbin Material: ABS Plastic

Colour: Gold

Includes: 1 x Pickup, 2 x springs, 2 x 2.5mm screws

The pickups are all waxed potted to protect the components and to prevent uncontrollable feedback or squealing.
