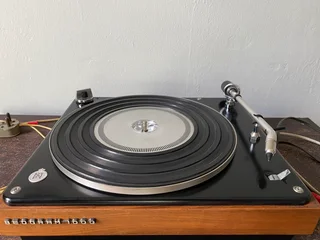

B&O Beogram 1000 Turntable

Turntable Details:

Specs:

Voltage: 110 – 220 V AC
Power consumption 10 W

Speeds: 45 and 33 rpm
Rumble Better than 55 dB (DIN B)
Wow and flutter +/- 0.15 % peak value Pickup arm: ST/L 15°
Cueing device: built-in
Pickup SP 14A
Recommended tracking force 1.5 – 2.5 kg
Specifications: Dimensions W x H x D: 35.8 x 13.5cm (approx. 16cm with dust cover) x 30.8cm
Weight 6 kg

Beogram 1000 was the very first Bang & Olufsen turntable to be designated with the suffix ‘Beogram’. Before its introduction, earlier decks did not, strictly speaking, hold this product name.

This player has extremely low vibration and rumble – a decisive feature for playback of stereo gramophone records, due to the fact that the stylus must be sensitive to vibrations in all directions.

The Beogram 1000 has antimicrophonic suspension that takes up acoustic and mechanical vibrations from the support and prevents the stylus from leaving the groove. In practice, this means that mechanical vibrations from the support or from persons walking or dancing in front of the Beogram 1000 cannot make the stylus jump in the groove. Such vibrations will be absorbed in the antimicrophonic suspension and will not reach the turntable or the pickup.

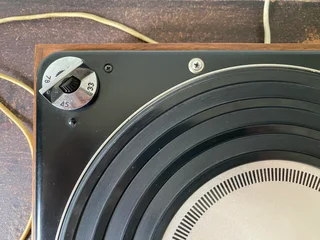

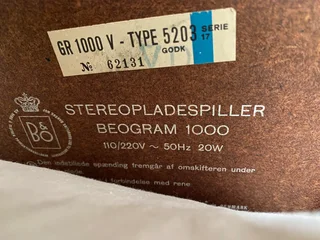

Equipped with the world-famous B&O ST/L-15 pickup unit; heavy turntable designed as a stroboscope disc; built-in hydraulically damped pickup lift operating by means of a rocker button. Specially engineered speed selector (78, 45 and 33.3 rpm); built-in special centre insert for 45 rpm records. The Beogram 1000 is available in two versions: Beogram 1000V (for 240/110 volts AC) and Beogram 1000VF (for 240/110 volts AC with built-in preamplifier.

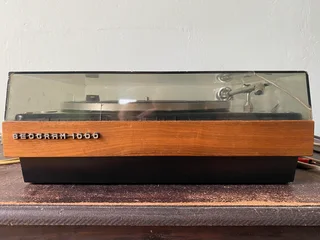

Choice of teak or Brazilian rosewood finish and with a practical transparent acrylic dust cover.

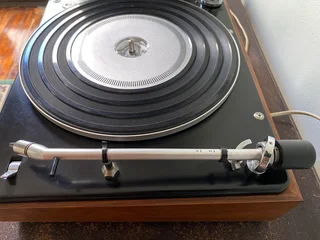

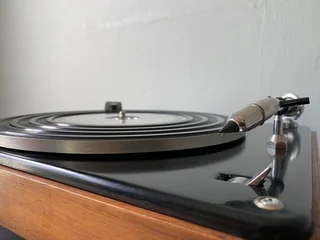

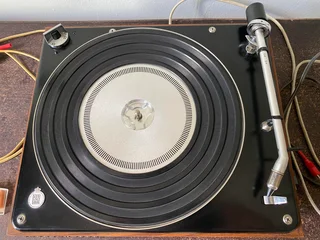

Please see photos for condition

* Audio only in left channel

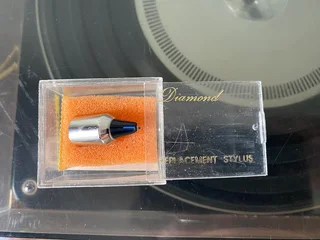

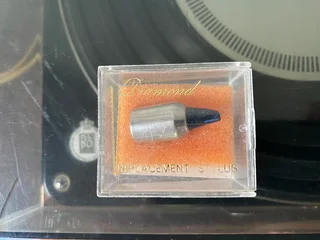

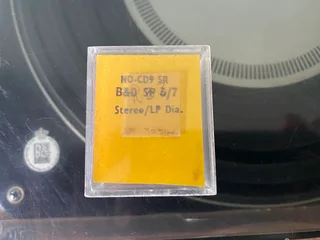

Rare B&O SP 6/7 Diamond replacement stylus extra included. (see photos)

Replacement Stylus details:

Replacement stereo/mono diamond stylus for SP6. SP7,SP8,SP9 Cartridges.
Specifications of cartridge and stylus:
Frequency Response: 20-20,000 Hz ± 2.5 dB
Output Voltage: 7 mV for 5 cms/sec at 1000 Hz
Channel Balance: Within 2 dB
Channel Separation: Approx 28 dB at 500 Hz
Compliance: 12-15×10-6 cms/dyne
Tip Radius: 0.7mil Conical
Vertical Tracking Angle: 15º
Recommended stylus Pressure: 1.5 g
Recommended Load: 47kΩ
Mounting: Standard 1/2″ mounting centres
Weight of cartridge: 11 g
Suitable replacement for the following B&O systems:
Beocenter 5000 (1980-1982)

Price Negotiable

Selling as is.

Contact

Albert - 0834516969
