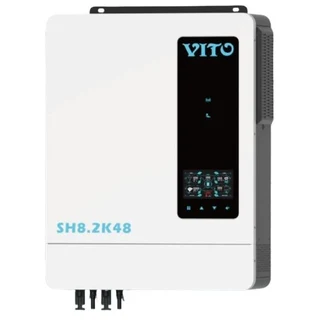

8.2kva Vito Hybrid Inverter  5.09kw SVolt Lithium batteries with 8 x 550w Jinko Solar panel kit.

WhatsApp/Calls:+27 73 609 7405

Full Load 8200W

Maximum Main Load 8200W

Maximum Second Load 2733W

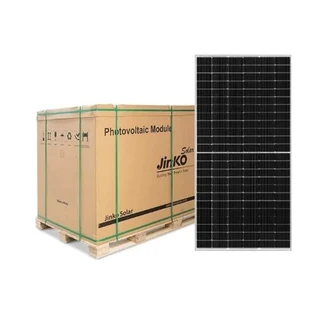

Model No: JKM550M-72HL4-V

Cell: Half Cell, Mono Crystalline

No. of Cells: 144(6×24)

Glass: Single Glass 3.2mm AR Coated Tempered

Junction Box: IP68

Connector: MC4

Maximum Rated Power(Pmax): 550W

Maximum Power Voltage(Vmp): 40.90VDC

Maximum Power Current(Imp): 13.45A

Open Circuit Voltage(Voc): 49.62VDC

Short Circuit Current(Isc): 14.03A

Module Efficiency: 21.29%

Maximum System Voltage: 1500VDC

Maximum Series Fuse: 25A

Operating Temperature: -40°C to 85°C

Safety Ratings

• IEC 61215

• IEC 61730
