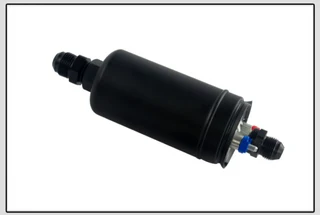

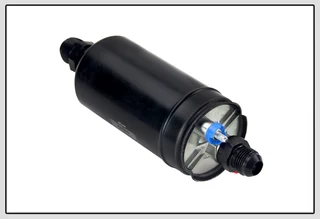

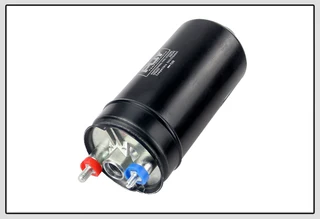

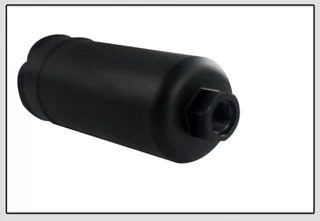

EFI 380LH 1000HP TOP QUALITY External Fuel Pump E85 Compatible

EFI 380LH 1000HP TOP QUALITY External Fuel Pump E85 Compatible

Recommended in high stress and critical application.

Has an inbuilt check valve, is safe with all fuels including E85, Ethanol and alcohol

High flow upgrade can support vehicles for up to 1000 Hp NA and 800 HP forced,

Ideal for motorsport, high performance engine and EFI conversions

(Not suitable for cars with carb unless you run a bypass type Fuel Pressure Regulator)

Includes AN10 inlet fitting and AN8 outlet (with built in check valve) and mounting brackets.

Fitment Universal

Location Inline external

Fuel Compatibility Petrol, E85/Ethanol

Flow and pressure 370 LPH at 3 Bar (45 PSi) or 340 LPH at 5 Bar (73 PSi) 8 Bar max

Inlet fitting M18 x 1.5 Female

Outlet fitting M12 x 1.5 Female

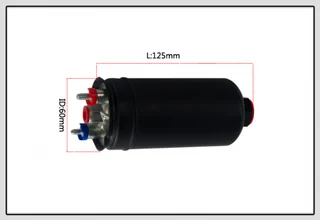

Pump length 125 mm (main body) 146 mm (fitting seat to fitting seat)

Pump diameter 60 mm

Voltage 12 V

Current draw 9 Amp at 3 Bar, 13.5 Amp at 5 Bar

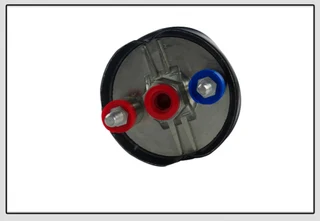

Elec terminals M5 and M6 stud

Accessories Wiring terminals and nuts, AN8 outlet with check valve, AN10 inlet

Package:

1x Fuel Pump and fittings

Item is Brand New in Box
