GODIAG GT100+ OBDII Breakout Box is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding. Different from GT100 OBDII Breakout Box , this new version OBDII Breakout Box support CAN BUS protocol and add Current Display.

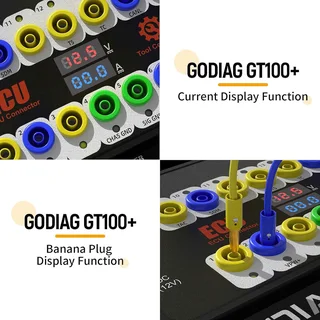

Display Voltage and Current Function: GT100+ OBD2 Breakout Box connect with ECU module via banana connector or DB25 connector, can directly shows your current data. You can easily judge whether your cable has connect correctly or whether the ECU module is in good condition.

Newly Added CAN BUS And K-LINE Protocol: GT100+ OBD2 Breakout Box port 1,9,3,11,12,13,8 those are not standard obd2 protocol port, it will shows CAN BUS and K-LINE protocol while GT100 OBDII Breakout Box only shows K-LINE, PWM VPW+ and KWP2000+ protocol.

Help Activated the dashboard or IMMO module for VW,Porsche,MIT and Toyota: For VW, Porsche or MIT or Toyota all key lost, you can use GT100+ OBDII Breakout Box to activate dashboard or immo module before you use other tools like Autel IM608 to do all key lost.

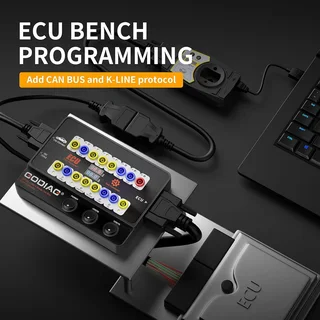

ECU Connection or Multiple Vehicle ECU Module Connecting: Conecting the single or multiple ECU control modules at the same time, GT100+ OBDII Breakout Box is good helper for programming and diagnosing.

Banana Plug Extension Connection: Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.

Convert Obd1 Diagnostic Interface To The Standard Obd2: GT100+ OBDII Breakout Box Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

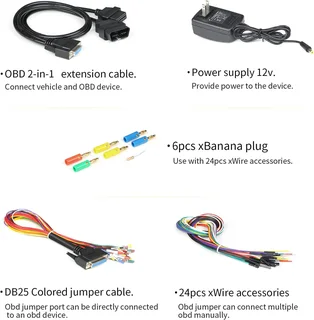

The Extension Cables: The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 4.5ft.

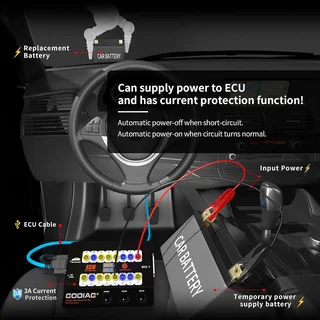

Power The Car When Replac Battery: The auxiliary power supply aims at supplying power to the vehicle through GT100+ OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle.

GT100+ OBDII Breakout Box Upgrade Interface Protocol

GT100+ OBDII Breakout Box Pin 1, 9, 3, 11 12, 13, 8 like the picture: these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 OBDII Breakout Box can only display K- Line Pwm Vpw+ KWP 2000 protocol. GT100+ OBDII Breakout Box will display both CAN BUS, K-Line, Pwm, Vpw+, KWP 2000 protocol communication.

Indicator Meaning:

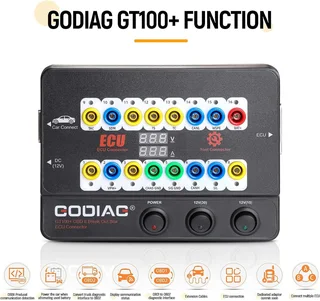

Godiag GT100+ OBDII Breakout Box Function Display

Voltage and Current Value Display function

Help You Verify Communication, Power, Grounds

all key lost
