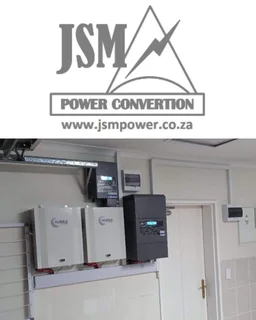

JSM Power - Inverters

Contact f/price

2 years ago959 views
Ad Saved to My List
View and manage your saved ads in your account.
Report Ad
General Details
Location:
Kuils River, Northern Suburbs
For Sale By:Owner
Description

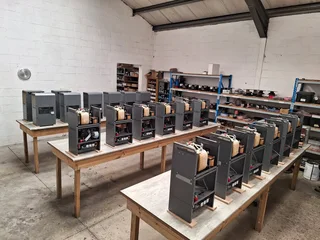

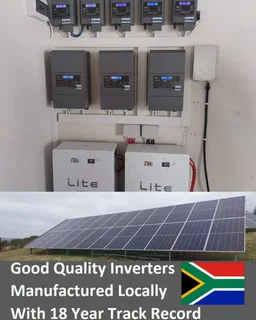

JSM Power Convertion has been building reliable inverters for more than 20 years. Most of these inverters were installed on farms, especially in the Northern Cape. We developed state of the art Inverter Technology to help the Residential Market and Small Businesses, to use Renewable Energy, to counter the effects of Rising Electricity Cost and Load Shedding, while helping the environment. By adding a MPPT100 Solar Regulator, you can also add PV panels. To go bigger you can Parallel Inverters or go Three Phase. By adding a Cloudlink you can monitor the system remotely.

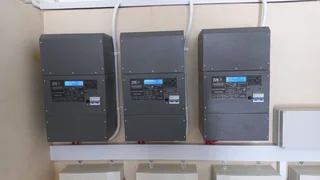

8 kVA, 48Vdc – 230Vac Inverter/Charger
Inverter Specifications
Nominal Battery Voltage: 48 Vdc Input Voltage Range: 40 – 66Vdc Input Current: 200A Output Voltage: 220 – 230 Vac Settable, 50 Hz Output Current: 35A Waveform: Pure Sine Wave (THD < 3%) Continuous Output Power @25°C: 8000 VA Continuous Output Power @25°C: 6500 W Continuous Output Power @40°C: 5500 W Maximum Output Power: 18 000 VA for 5 s Maximum Efficiency: >92% Power Consumption – No Load: 39W Charger Specifications Input Voltage (Grid & Generator): 180Vac – 270Vac Input Frequency: 45Hz – 60Hz Input Current: 30 Amp AC Charging Current: 100 Amp DC Charge Voltage: 48 – 64Vdc Charging type: 3 Stage (Bulk, Absorb, Float) & Equalize General Specifications Enclosure: Powder coated mild steel Dimensions (h x w x d): 610mm x 330mm x 250mm Mounting: Wall Mount Weight: 53 kg

MPPT100 Solar Regulator
Specifications
Solar Input Voltage Range: 30 – 200 Vdc MPPT Voltage Range: 30 – 160 Vdc Battery Output Voltage: 24V, 36V or 48V (Self-detect) Output Current: 100A max (settable) Charging scheme: Bulk/Absorb/Float & Equalize for Lead Acid Batteries Efficiency: >95% Cooling: Fan-Cooled (Switch on if Heat-sink is above 50°C) Dimensions (h x w x d): 380mm x 250mm x 150mm Weight: 7.2kg
