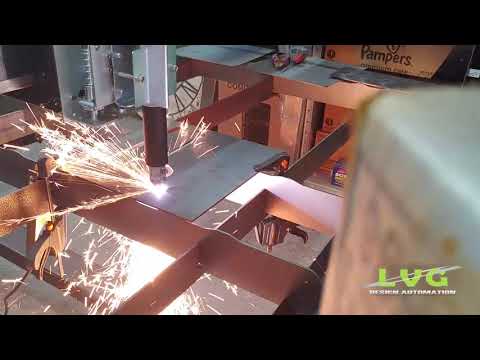

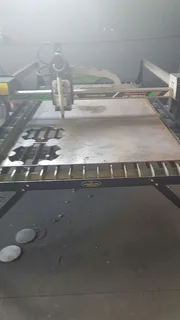

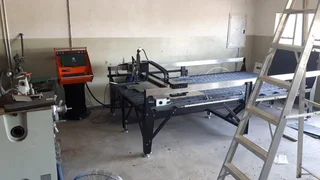

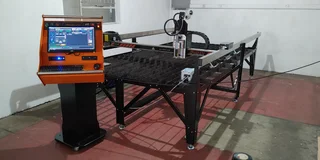

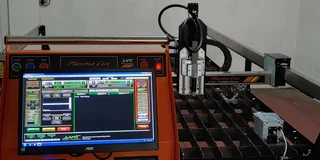

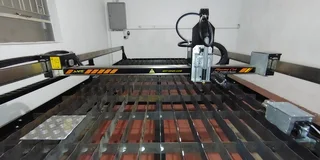

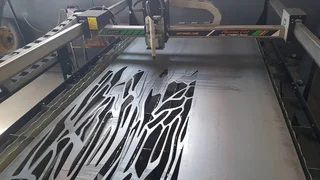

CNC Plasma - Sheet or Pipe . Cut45amp cutting with THC-IHS and all software and training include

CNC

Included in the Price

• Strong Table construction made from mild steel and powder coated.
• All other sections are zinc plated, with stainless steel gantry.
• Parts are laser cut, bend and made in Port Elizabeth.

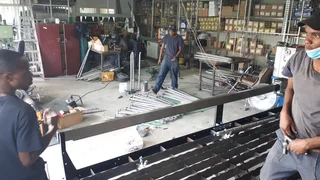

• Complete assembly by bolts and nuts no welding
• Rack and pinion X and Y movement at +_0.05mm increments .
• Ball screw 12mm shaft Z axis with movement from 0 to 70mm
• XYZ steppers motors NEMA23 torque 25kg/cm.
• X&Y max rapid speed of 10000mm/minute.
• Stepper motor driver include for XYZ
• Limits on all axis.
• Switch mode power supply 36V 11amp
• Motor cables and limit switches included.

• Computer with 18inch LED Screen
• SSDrive, USB, dual core CPU, 2Gig RAM
• Wireless mouse & keyboard
• Metal EMI shield enclosure and movable stand with external START, PAUSE, STOP and Estop

• Mach3 CNC software
• Sheet cam CAM software
• Free CAD software

• Plasma cutter: 45Amp output 220vac input
• On-screen Torch Height Controller for Mach3
• Dry slats for plasma cutting
• Floating torch head with Magnetic break-away

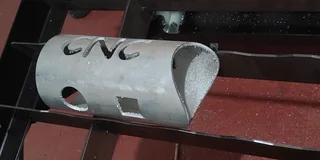

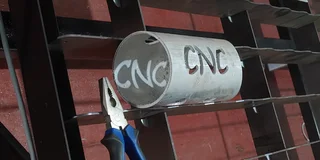

• Pipe Cutter up to 120mm Diameter 3 claw chuck

All prices are inclusive.

5 week manufacture time with a 60% deposit.

Note: You will need a air compressor 170Ltr/minute 5.5bar

45amp will pierce 12mm mild steel and edge start 16mm mild steel.

I can WhatsApp you a video please send me your cell number to 083 302 0422 (Les).
