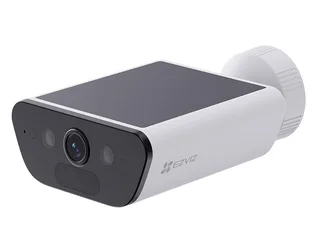

EZVIZ Cb5 4k Smart Home Battery Camera

Solo. Solar. Sophisticated.

Meet the next-generation camera that lives up to your dream of simple, reliable and powerful home protection. The first-of-its-kind in EZVIZ’s reputable home camera lineup, the CB5 features 4K video, an integrated solar panel, advanced AI-powered detection functions, an Always-On Video Mode and much more of what you could or would want when choosing an all-in-one security camera. With just a single CB5, you can start enjoying non-stop peace of mind with minimal effort.

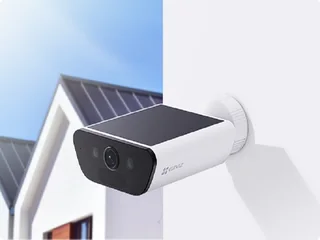

Solar style, green lifestyle

No electricity wiring available but desire continuous power? The CB5 turns every ray of the sunshine as its free source of energy. Only two hours of direct sunlight every day keep the camera running nonstop.`b9 Even when it’s rainy season, the onboard 10,400mAh large battery ensures the CB5 operates up to 180 days uninterruptedly.`b2

Specifications

Model CS-CB5-R100-2F8WFL

Camera

Image Sensor 1/2.7” 8-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR

Shutter Speed Self-adaptive shutter

Lens 2.8mm@ F1.6; 135`b0 (Diagonal), 113`b0 (Horizontal), 60`b0 (Vertical)

Day & Night IR-Cut filter with auto-switching

DNR 3D DNR

Night Vision IR Distance:15m, Color Night Vision Distance:15m

Video & Audio

Max. Resolution 3840 `d7 2160

Frame Rate 15fps. Self-Adaptive during network transmission

Video Compression H.265 / H.264

Video Bit Rate Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate.

Audio Bit Rate Self-Adaptive

Max. Bitrate 4 Mbps

Network

Bluetooth Supports

Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20 MHz

Security WPA-PSK/WPA2-PSK, WPA3-Personal

Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps

Wi-Fi Pairing AP pairing

Protocol EZVIZ Cloud proprietary protocol

Interface Protocol EZVIZ Cloud proprietary protocol

Minimum Network Requirement 8Mbps

Function

Smart Alarm AI-Powered Human Shape Detection, AI-Powered Vehicle Detection

Two-way Talk Supports

General Function Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage

Local Storage Supports Micro SD slot for local storage (Up to 512G)

Cloud Storage EZVIZ cloud storage

General

Operating Conditions -20 `b0C to 50 `b0C (-4 `b0F to 122 `b0F ), humidity 95% or less (Non-condensing)

IP Grade IP65

Power Supply DC 5V/2A (Compatible power adapter needs to be purchased separately)

Battery Capacity 10400 mAh

Power Consumption Max. 10W

Product Dimensions 166 `d7 103 `d7 54 mm

Packaging Dimensions 227 `d7 167 `d7 64 mm

Weight

Net Weight: 466g

With Package: 822g

In the box

In the box - Camera

- Power Cable

- Screw Base

- Drill Template

- EZVIZ Screw Kit

- Regulatory Information

- Quick Start Guide
