KT- A16 AIRBAND TRANSCEIVER

THE LOWEST PRICE AIRBAND TRANSCEIVER IN SOUTH AFRICA

BRAND NEW IN UNOPENED FACTORY SEALED BOX!

Ideal for ground to air, air to air, microlight, drone and as a backup radio

Features:
Superheterodyne Circuit

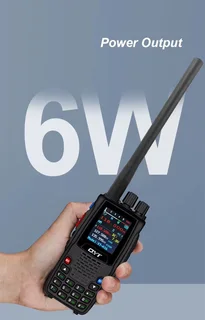

6W output Power

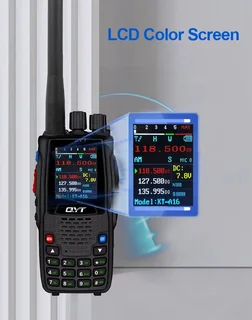

Large 4.5cm TFF-LCD color Screen
200 Memory Channels
10 NOAA Weather forecast Channels
Channel Spacing 25K/8.33K
VOX
Air Band: 118.00000-136.99975MHz for Tx, 108.00000-136.99975MHz for Rx
2.50/5.00/6.25/10.00/12.50/25.00K Frequency Step
Scanning
Time,Carrier or Search three kinds of Scanning Modes
PC programming
Squelch Level Adjustable

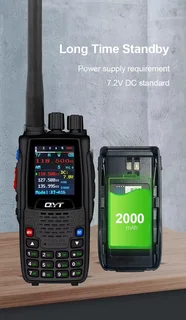

2000mAh Rechargeable Battery Pack
Specifications:
General
Frequency RangeTX:118.00000-136.99975MHz
RX:108.00000-136.99975MHz
WX:161.650-163.275MHz
Channel Spacing
25kHz/8.33kHz
Mode
6k00A3E/5K60A3E
16K0G3E(WX)
Number of Memory Channels
200
Antenna Impedance
50ohm
Antenna Connector
SMA-Female
Power Supply Requirement
7.2V DC
Current Drain
Less than 1.8A
Operating Temperature range
-10°c`+60°c
Dimensions
62(W)*128(H)*35(D)mm
Weight
239g with 2000mah Battery
Transmitter
Output Power
6.0W(PEP),1.8W(CW)
Modulation Limiting
70-100%
Audio harmonic distortion
Less than 10%(at 60% modulation)
Ham and Noise Ratio
More than 35dB
Spurious emissions
More than 46dB
Frequency Stability
±0.4kHz
Receiver
Receive system: Double conversion superheterodyne
Intermediate frequencies
1st46.35MHz,2nd 450kHz

Sensitivity
COM: Less than 0dBu (at 6dB S/N)
NAV: Less than 3dBu (at 6dB S/N)
WX: Less than -8dBu (at 12dB SINAD)
Squelch Sensitivity(Threshold)
COM/NAV: Less than 0dBu
WX: less than -5dBu
Spurious response rejection Ratio
COM/NAV: More than 60dB
WX:More than 30dB

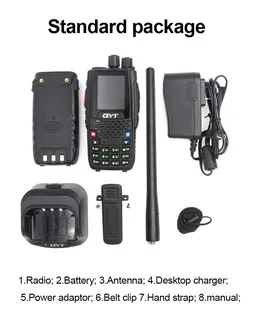

Package Contains:
1×QYT KT-8A Air Band Radio Body
1× 2000mAh Rechargeable Battery Pack
1× SMA-Female Air band Antenna
1× AC Adapter
1× Desktop Charger
1× Battery Clip
1×Hand Strap
1×ENG Manual
