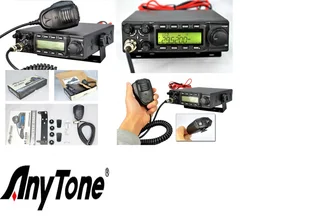

ANYTONE AT-6666 AM/USB/LSB/FM CB RADIO

BRAND NEW IN FACTORY SEALED BOX!

Frequency Range (Export Mode): 25.615-30.105 MHz

TRANSMITTER

Power Output:AM:15W/FM:45W/SSB:60W(PEP)

Drain:12A(with modulation)

Modulation:FM/AM/USB/LSB

Innter-modulation Distortion:SSB:3rd order, more than -25dB;5th order , more than -35dB

SSB Carrier Suppression :55dB

Unwanted Sideband:50dB

Frequency Response:AM/FM:300 to 3000Hz SSB: 450 to 2500Hz

Output Impedance: 50ohms, unbalanced

RECEIVER

Sensitivity:SSB:0.25μV for 10dB(S+N)/N AM:1.0μV for 10dB(S+N)/N FM:1.0μV for 20dB(S+N)/N (All at greater than 1/2 watt of audio output)

Adjacent-Channel Selectivity:AM/FM:60dB SSB:70dB

Image Rejection: More than 65dB

IF Frequency:AM/FM:10.695MHz 1st IF, 455KHz 2nd IF SSB:10.695MHz

RF Gain Control:45dB adjustable for optimum signal reception

Automatic Gain Control(AGC):Less than 10dB change in audio output for inputs from 10 to 100,000microvolt.

Squelch :Adjustable;threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV

Audio Output Power:3watts into 8 ohms

Frequency Response :AM/FM:300 TO 3000Hz SSB:450 to 2500Hz

Built-in Speaker:8ohms, round.

External Speaker(Not Supplied):8ohms;disables internal speaker when connected.
