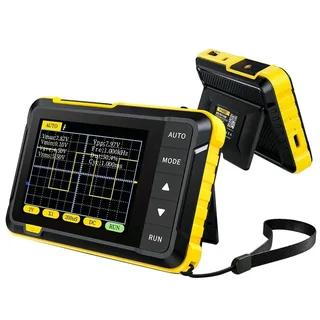

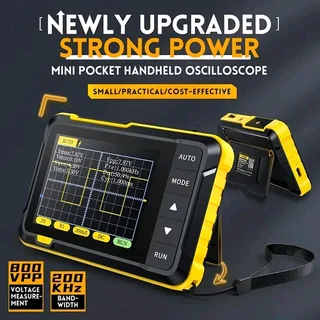

Oscilloscope - Mini Handheld Oscilloscope, Current Measuring Device Portable Digital Oscilloscope (B

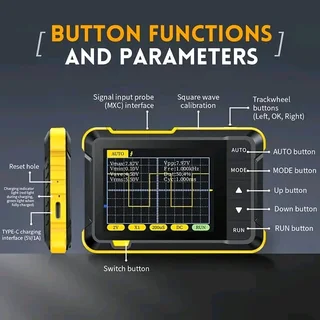

Handheld Mini Oscilloscope, Current Measuring Instrument, 2 and 1 Portable Digital Oscilloscopes, 200KHz Bandwidth, 2.5MS/s High Sample Rate, with Trigger Function and Built-in Battery Mini-Handheld Oscilloscope is an upgrade to the DSO Oscilloscope and brings a built-in lithium battery. It still offers a 200kHz analogue bandwidth, a faster sampling speed at 2.5MS/s, and a 12-bit resolution. The oscilloscope offers a standard square wave calibration with a frequency of 1kHz. It can measure a voltage range of up to 80Vpp. Due to the one-key AUTO function, it can display the measured waveforms without complicated adjustments. The oscilloscope can be connected through MCX for signal input or via BNC using the included adapter Analog Bandwidth: 0~200kHz 1 Channel Sampling Speed: 2.5MS/s Vertical Scale: 10mV/div ~ 20V/div Timebase Range: 1 s/div - 50 s/div Voltage Range: 1X 400Vpp; 10X 800Vpp Trigger Modes: Auto, Normal, Single Frequency: 1K Duty Cycle: 50% Display: 2.8inch LCD (320×240 pixels) Lithium Battery Capacity: 1000mAh Dimensions: 99 x 68 x 19.5mm Weight: 100g Certification: CE
