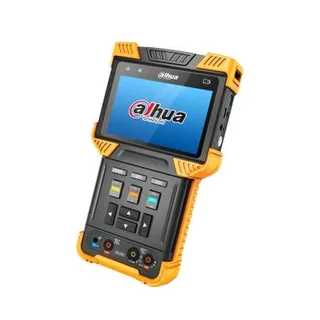

Dahua Integrated Mount Tester
> 4.0" TFT screen, 800 × 480 resolution
> H.264/H.265 decoding display for IPC
> HDCVI/AHD/TVI/CVBS video display control
> Support SD and HD direct switch
> 12V/2A DC power supply for the camera
> Support RS485 control, and audio test
> Length and attenuation tests of the network cable
> Functions of digital multimeter
System
Operation System
Linux
Language
Multi-language interface: English, Chinese, Spanish, French, German, Turkish, Russian, Czech, Serbian, Portuguese, Polish, Romanian, Hebrew, Japanese, and Persian
Operation Mode
Button and keyboard
Auto Standby/Shutdown
Yes
Keyboard Sound
Enable/Disable
Screen
4.0" TFT screen, 800 × 480 resolution
Keyboard
Controlling keyboard: 13 keys of the main keyboard, and 45 keys of the flip keyboard Others: Power button, reset button
LED Indicator Light
2 * 35lm lights
Update
Online and local update
IPC Test
Camera Access
ONVIF
Resolution
1MP, 1.3MP, 2MP, 3MP, 4MP, 5MP, 6MP, 8MP, and 12MP
Camera Initialization
Yes
Video Display
Live view, snapshots, records, digital zoom, and H.264/H.265 decoding
Function Control
Support IPC modifications such as resolution, IP, and account password, and restoring IPC to factory settings
Analog Video Test
Format
HDCVI, HDTVI, AHD, and CVBS (NTSC, PAL)
Resolution
HDCVI: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps, 5MP@20 fps, 6MP@20 fps, 4K@12.5 fps/15 fps
HDTVI: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps, 5MP@20 fps
AHD: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps
CVBS: NTSC, PAL
Function Control
OSD menu display and PTZ control
Video Display
Live view, snapshots, records, and digital zoom
Video Signal Generator
Generate PAL and NTSC video test signals
Generate HDCVI, HDTVI, and AHD video test signals with 720/1080P
RS485 Control
Communication Protocol
More than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan
Baud Rate
150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, and 19200 bps
Protection
ESD
Air discharge: ±8KV
Contact discharge: ±6KV
Others
Audio Test
1 channel audio input test and 1 channel audio output test
Camera Power Supply
12V/2A DC power output to the camera
Network Test
IP address scanning, and Ping test
Voltage Test
Display voltage, data transmission, and signal strength of PoE/PSE device
Data Monitor
Receive and display protocol data with a RS485 cable
Network Cable Test
Test the length and attenuation of a network cable
Test range: 1130 m (3.28426.51 ft) (The maximum length varies depending on the material of the cable)
Digital Multimeter
Tests of AC/DC voltage, AC/DC current, resistance, capacitance, diode, and circuit conductivity
Certifications
Certifications
CE: EN 55032
FCC: FCC Part 15 Subpart B
Port
Power
1 standard PoE charging, IEEE802.3af
1 power output , 12V/2A DC
Audio
1 audio input
1 audio output
USB
1 USB Mini-B
Ethernet
2 RJ45 10M/100M/1G
RS485
1
Digital Multimeter Port
3
Power
Charging
PoE 48V-0.32A
Battery
Dedicate battery, replaceable, 7.4V polymer lithium ion batteries, up to 22.2Wh, working for about 8 hours
Enviroment
Operating Temperature
10°C to +55°C (+14°F to +131°F)
Operating Humidity
30%95% (RH)
Structure
Appearance Color
Yellow
Dimensions
193.0 × 115.0 × 37.1 mm (7.8" × 4.53"× 1.48")
Net Weight
0.54 kg (1.19 lb)
Gross Weight
1.40 kg (3.09 lb)
