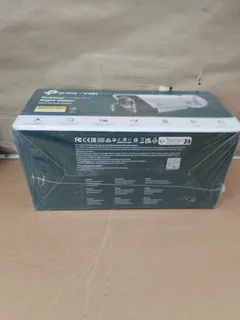

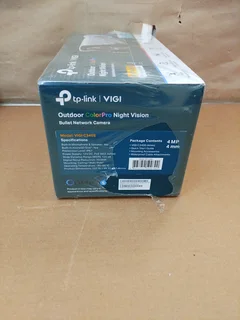

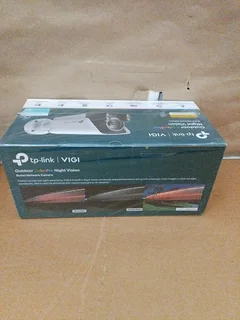

Vigi C340S(4mm)

CASH ONLY

Face Recognition:
VIGI's advanced built-in face recognition algorithm enables cameras to intelligently capture faces, extract facial features, and form unique facial data. By comparing the facial data with a face library, quickly match a human face, efficiently reducing the risk of unauthorized access.

Remote Management:
Take full control over your security anytime and anywhere on the VIGI app or client.

Image Sensor: 1/1.8" Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Aperture: 4 mm: F1.06 mm: F1.0
Lens: Fixed focal lens (4 mm / 6 mm)
Lens Mount: M12
Minimum Illumination: Color: 0.0005 Lux; 0 Lux with white light
Day/Night Switch: Day/Night/Auto/Schedule-Switch
- White LED: Quantity: 4
- Digital Noise Reduction: 3D DNR
- WDR: 120dB
- Weatherproof Rating: IP67
- Illumination Distance: 30 m
- Viewing Angle: 4mm: Horizontal FOV: 95.2 , Vertical FOV: 50.6 , Diagonal FOV: 114.7 6mm: Horizontal FOV: 57.1 , vertical FOV: 30.2 , Diagonal FOV: 67.2
- Type: Fixed Focal Lens
- Focal Length: 4 mm
- Aperture: F1.0
- FOV: 4mm: Horizontal FOV: 95.2 , Vertical FOV: 50.6 , Diagonal FOV: 114.7
- Lens Mount: M16xP 0.5
- DORI Distance: 4 mm: Detect: 70 m (231 ft) Observe: 29 m (96 ft) Recognize: 14 m (46 ft) Identify: 7 m (23 ft)
- Range: Pan: -90 to 90 Tilt: -90 to 90
- White LED: Quantity: 4. Range: 30m
- Max. Resolution: 2688 x 1520
- Main Stream:
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.
- Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser: Google Chrome 57 and aboveFirefox 52 and aboveSafari 11 and aboveMicrosoft Edge 91 and above
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage: NAS (NFS, SMB/ CIFS)
ALARM AND EVENT MANAGEMENT: Human & Vehicle Classification, Area Intrusion Detection, Line-
