H/S/S with “Auto Split Mod” Prewired Electronic Assembly for Stratocaster type guitars – Solderless

A high quality electronic replacement / upgrade for Stratocaster style guitars with 1 humbucker and 2 single coil pickups.

The auto coil split mod is used if you have a humbucker pickup and want to split the coil when you are in the bridge and middle position (please make sure you have 4 wires coming from your humbucker and not 2) . There will be a solderless connector for your pickups and your output jack next to the switch.

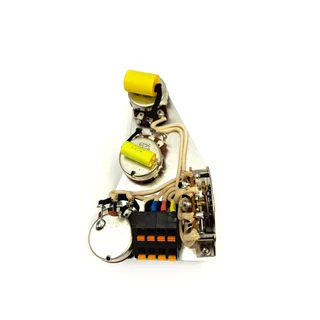

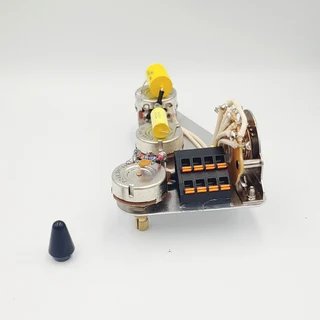

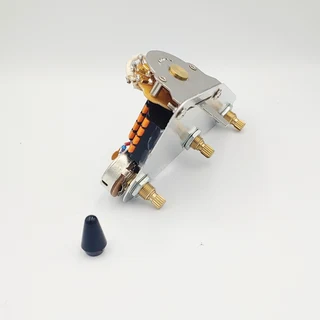

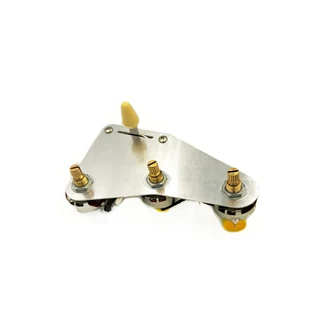

Comes standard with a Karman Vintage Style 5 way switch, Full Sized Brass Shaft Potentiometers. Complete with all electronics soldered with vintage spec cloth wire, neatly wired up and installed on a rigid aluminum grounding plate (helps eliminate electrical noise at the same time)

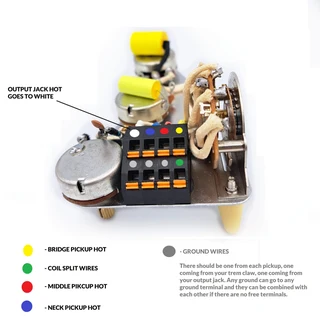

All you need to do is disconnect your pickups and output jack from your old electronic assembly and fit this electronic assembly to your pickguard and reconnect the output jack and pickups to our solderless connector. It is easy to do, the connector is spring activated so you just press on the orange part with a screwdriver, insert the wire and release. All the ground wires go to the bottom terminals and each hot goes to top terminals. They will be colour coded so you know where to put the hot of each component:

Output jack hot gets connected to the white terminal

Neck pickup to the blue terminal

Middle pickup to the red terminal

Bridge pickup to the yellow terminal

Coil split wires below the bridge pickup terminal

Please note – You would need to add an extra 24 – 48 hours to the lead time when ordering our prewired pickguards or electronic assemblies as we make them specially for each order. Please order via our Valley Sound website in order to select from these customizable options (alternatively make your purchase then email us your options):

We recommend the following as a standard electronic assembly for HSS configuration without coil split (but you can choose your own specs):

Volume: A500k with Duncan Treble bleed

Tone 1: Neck and Middle: A250k with 0.047uf Capacitor

Tone 2: Bridge: A500k with 0.022uf Capacitor

See below other options:

Volume Potentiometer options:

– Linear (B250k / 500k)

– Audio Taper (A250k / 500k)
