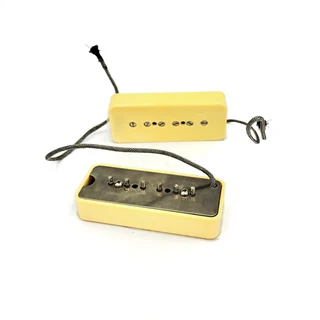

Karman Soapbar P90 AlNiCo 5 Guitar Pickup (Single)

Karman pickups are high quality pickups that come to the consumer at an affordable price, now you can upgrade your entry level standard guitar pickups with something that sounds great without breaking the bank.

Karman P90A5 is a Single Coil P90 pickup with the classic “soapbar” shape. These P-90s have a warm, full tone with the clarity and articulation associated with larger single-coils from the late ‘50s. You’ll get a balanced output between the neck and bridge positions along with an expressive dynamic range.

Do not let the price fool you, these pickups are great! The reason why they are so affordable is because we at Valley Sound import pickups in bulk according to our exact specifications direct from the manufacturer, cutting out a lot of middle men, agents, wholesalers, etc. and supplying these direct to the consumer at an affordable price

Model Number: P90A5

Base and Cover Material Base: Brass

Cover: Plastic

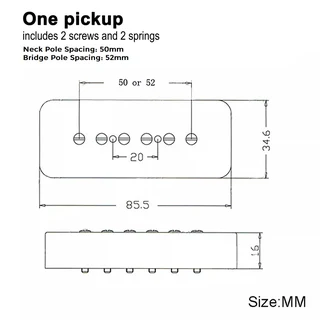

String spacing Neck: 50mm

Bridge: 52mm

Pole Style: Chrome plated adjustable screws

Magnet material: Alnico 5

Output Neck: 6.9K (DC resistance)

4H (Inductance)

Bridge: 7.3K (DC resistance)

4.5H (Inductance)

Output wire: 1 Chord Braided Shield Wire

Outer shield is ground, inside wire is hot

Inside bobbin Material: ABS Plastic

Color: Cream, White or Black

Includes: 1 x Pickup, 2 x springs, 2 x screws
