HSS Prewired Pickguard Loaded with Alnico 5 Pickups – Black with Ivory (Push Pull Coil Split Mod)

HSS Prewired Pickguard Loaded with Alnico 5 Pickups – Black with Ivory (Push Pull Coil Split Mod)

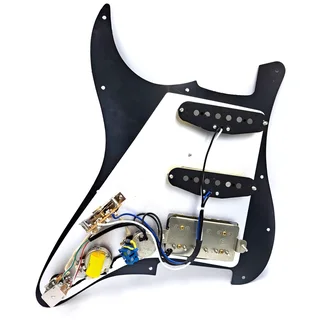

A high quality pickguard with a Karman Vintage Style 5 way switch, Full Sized Brass Shaft Potentiometers. Complete with pickups and electronics installed and connected, all you need to do is disconnect your old pickguard from output jack and connect this pickguard to the wires from your output jack with our solderless connector and one wire must come from your trem claw to the screw connector and then screw the pickguard to the body of the guitar (screws can be ordered separately)

Pickups: Karman Alnico 5 humbucker in bridge and Karman KS35 Single coil Alnico 5 Pickups in neck and middle – classic voiced pickups with a more modern output than your typical classic pickups, bridge humbucker is high output (DC 14k) and the bridge is coil splittable via push push pot turning it into a single coil to give the classic strat quack sound.

Neck 6.5k

Middle 6.5k

Bridge: 14k

Wiring: Vintage Cloth Wiring

Potentiometers: Full sized brass shaft potentiometers are used, they are great quality with smooth turning, we use a Audio Taper (A500k) for Volume with Treble Bleed and Audio Taper (A250k) for Tone 1 and A500k for Tone 2 with 0.047uF High quality Capacitor, neck and middle pickup is connected to tone 1, bridge is connected to tone 2. Bridge is coil splittable via Push Pull pot on Tone 2 (other custom wiring options available – email us with your request)

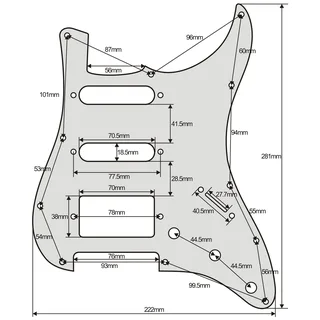

Pickguard colour: 3 ply black

Knobs, Pickup covers and Switch tip colours: Ivory

Solderless or Solder-in: This prewired pickguard comes standard as solderless – connect wires from your output jack and trem claw to a blue screw terminal with a screwdriver. If you want to rather solder it in, mention this in the order notes and we will replace the solderless connector with some wires that you can solder to your output jack.

Instructions for installation will be included or you can search Valley Sound Prewired Pickguard Installation on Youtube
