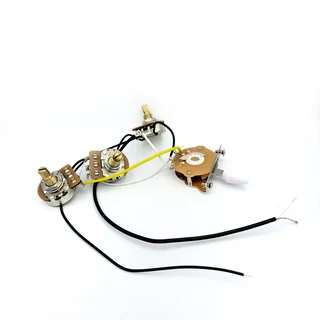

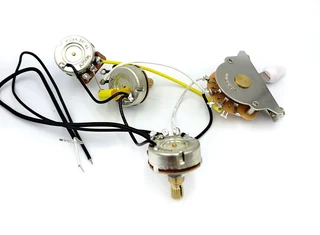

Pre-wired Electronics for HSS Strat with Auto Coil Split

Complete wiring harness for 1 humbucker, 2 single coil pickup guitars. Full size pot for volume and tone with brass shafts and high quality 5 way switch.

When you are in position 2 (bridge and middle) the humbucker will automatically coil split into a single coil. This mod however sacrifices the option to share tone pots so the bridge humbucker does not have a tone control. You need to have coil splitting wires coming from your pickup for this to work. Instructions on where to solder the pickup wires will be included with the harness.

B500k Volume Pot

A250k Tone Pots with 0.047uf Capacitor (Neck on Tone 1 and Middle on Tone 2, Bridge has no tone controll)

5 Way Lever Switch (White tip standard) Black or Ivory tip if mentioned in the order notes.

3 Wires running from the volume pot, 2 go to your output jack and one can be connected to your bridge claw for grounding.

All the necessary screws, nuts and washers for pots and switch.
