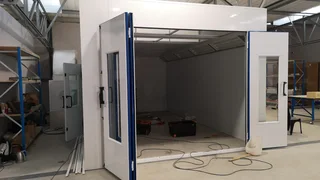

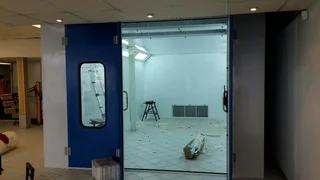

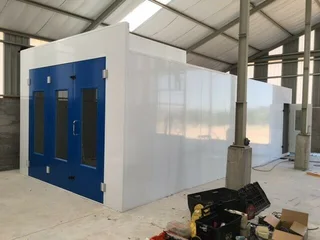

SB1 Spray Booth/Entry level. For affordability Ease of use. Simplicity in design

SB1 Spray Booth/Entry level

For affordability Ease of use. Simplicity in design

For more info Call: 0215562413 or 0768252078

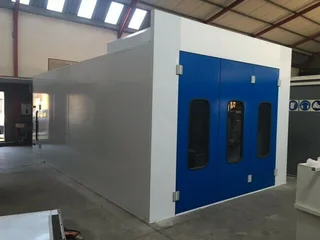

External Size 8.1 x 4.0 x 3.2(m)

Internal Size 6.9 x 3.9 x 2.7(m)

Wall panel Colour: White

Material; EPS,

Thickness: 50mm

Colour steel: Thickness: 0.326mm with metal edge cover

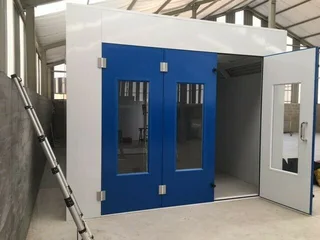

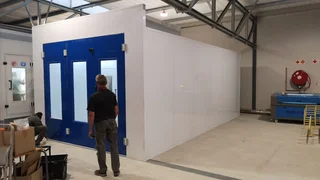

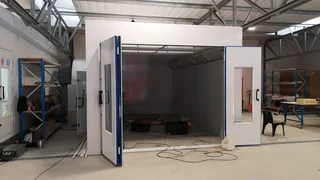

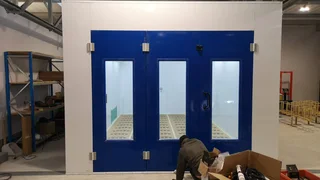

Front Door Enter Size: 3 ⅹ 2.66 (m)

Structure: 33 folded sheet metal process

Colour: Blue

White (Front horizontal panel and front vertical panels

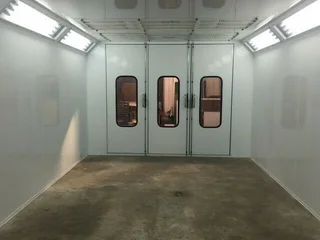

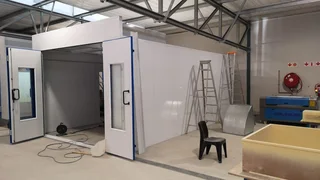

Safe Door Size: two pcs safe doors. 1 pc in the front door and the other at the side.

Lock: With pressure lock Light system

Top light: (2) sides x（6）sets x 93 ）pcs 40）W/piece

Side light: NO

Generator Intake:(air entering from the roof directly) exhaust fan: at back, (1 set of 5.5 kw) Fan capacity: (18000) M3/h

Exhaust Duct: With 3m straight duct,1 pcs [K1] 90°bend,1pcs60°bend

Motor Voltage: 380V/50HZ/3PH

Control box: Motor direct start

Total Power: (7) kw

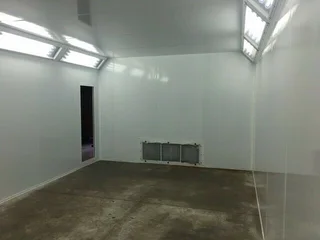

Ceiling: Cover with 50mm EPS panel, enter with filter at the front of the ceiling

Basement: concrete basement, made by user.

Ventilation system: Top filter: (2 pcs/set)

Exhaust at back: Exhaust at the downside of the back wall, with the filter
