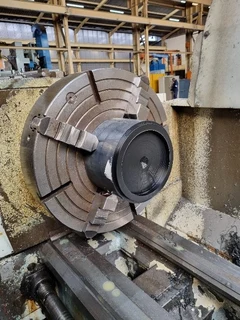

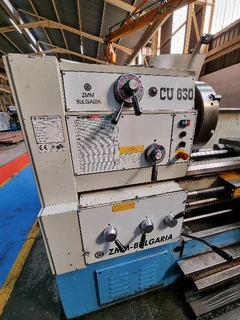

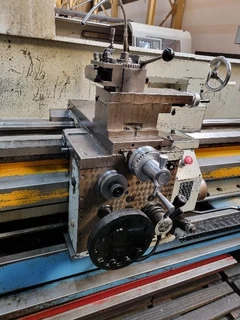

ZMM Universal Lathe 3000MM

Specifications

Basic Specifications

Swing over Bed: 630 mm

Swing over Cross Slide: 430 mm

Swing in Gap: 830 mm

Width of Bed: 400 mm

Distance between Centers: 3000 mm

Spindle Nose DIN 55027 No. 11

Spindle Bore: 103 mm

Spindle Taper: Metric 120

Number of Spindle Speeds: 21

Spindle Speed Ranges: 12.5-1250 rpm

Main Motor Power: 7.5 (11) kW

Number of Feeds: 120

Longitudinal Feed Range: 0.04 - 12 mm/rev

Cross Feed Range: 0.02 - 6 mm/rev

Number of Threads: 64*

Metric Thread Range: 0.5 - 120 mm

Inch Thread Range: 60 - 1/4 tpi

Module Thread Range: 0.125 - 30 module

DP Thread Range: 240 - 1 DP

Cross Slide Travel: 315 mm

Top Slide Travel : 130 mm

Quill Diameter: 90 mm

Quill Taper: Morse No. 5

Quill Travel: 230 mm

Weight: 3310 kg
