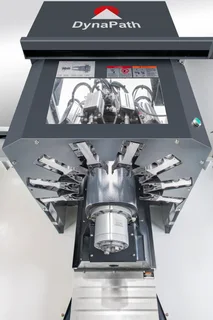

ONE ONLY NEW DYNAPATH ( EZLEARN ) MILL CENTRE MODEL : DMC845-L WITH WinDelta CONTROL

MODEL

DMC-845L

TYPE Mill Centre

TRAVEL XYZ 800 x 400 x 500 mm (31.4" x 15.7" x 19.6")

AXES TYPE X/Y/Z Linear Roller / Linear Roller / Linear Roller

SPINDLE NOSE TO TABLE 110 - 535 mm (4.3-21.0")

TOOL TO COLUMN 435 mm (17.1")

MOTORS X/Y/Z 0.85 / 0.85 / 1.35 kW Direct Drive

SPINDLE TAPER BT40 / CAT40

SPINDLE DIAMETER 127 mm (5.0")

SPINDLE RPM 8000 RPM

SPINDLE MOTOR 5.5 kW (7 HP) Belt Drive

SPINDLE RATED TORQUE 36 N-m (26.55 ft-lb")

TOOL CHANGER 8-Station Independent Arm

MAX TOOL SPEC Ø63 mm (Ø2.4") / 5 kg (11.0 lbs)

MAX RAPID SPEED X/Y/Z 20 m/min (787 IPM)

POSITIONING ACCURACY 5 um (0.000197")

REPEAT ACCURACY 3 um (0.000118")

TABLE SIZE 850 x 420 mm (33.5" x 16.5")

TABLE SLOTS x OFFSET x WIDTH 4 x 85 mm x 18 mm (4 x 3"11/32 x 45/64)

MAX TABLE LOAD 200 kgs (440 lbs)

MACHINE WEIGHT 3800 kg (8360 lbs)

SHIPPING L x W x H 2200 x 2000 x 2310 mm (87" x 79" x 91")

MACHINE L x W x H 2200 x 2200 x 2310 mm (87" x 87" x 91")

AIR REQUIREMENTS 6 kg/cm2 (90 psi)

POWER REQUIREMENTS 15 kVA, 3 Phase, 220V
