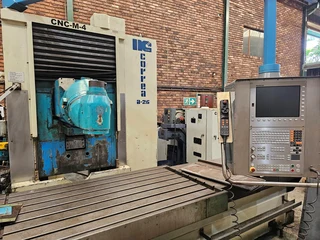

Nicolas Correa CNC bed-type milling machine

Model: A25-25(30)

Basic Specifications

Table dimensions: 3500 x 1000 mm

Number of T slots: 7

T slots dimensions: 22 mm

X axis traverse (mm): 3000mm (to be confirmed)

Y axis traverse (mm): 1200mm

Z axis traverse (mm): 1500mm

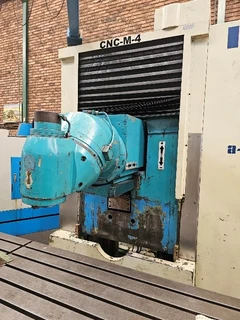

Head type; Auto-indexing between Horiz. & vertical only

Tool clamping system: Hydraulic

Taper nose: ISO 50 (DIN69871)

Speed range: 20 - 3000 rpm

Spindle power: 22 kW

Feedrate: 5 - 5000 mm/min

Rapid federate: (X / Y, Z) 8000 mm/min/10000 mm/min

Max weight on table: 7000 kg

Machine weight : 18000 kg

Machine dimensions: 6590 x 4920 x 2700 mm
