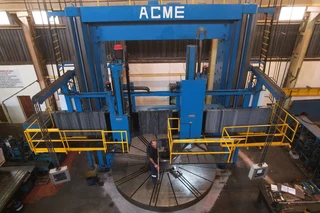

ACME CNC Vertical Boring Machine
Contact f/price
Reason for Reporting
Specifications
Basic Specifications
Table diameter: 4500 mm
Maximum turning diameter: 5600 mm
Maximum component height under bridge: 4560 mm
Max. component height under tool: 4250 mm
Vertical stroke of turning ram: 2250 mm
Vertical stroke of milling ram: 1500 mm
Bridge elevation (W-axis): 3500 mm
Table motor power; 75 kW
Max. table speed: 40 rpm
Milling spindle speed range: 1-1200 rpm
Table loading: 60 tons
We have now modernised the machine and installed it on a heavy-duty foundation in our heavy bay.
The machine has been retro¬fitted with a new Fanuc twin-path CNC system to control both the turning and milling rams of the machine. The milling ram is equipped with a live spindle, and the table features a C-axis for accurate rotational positioning and interpolating.
This is a special machine, and now that we have completely retrofi¬tted the machine, it will give a company a distinct advantage. Being able to CNC machine 60 tons of metal is not a capability everyone has. Additionally, the machine has turning and vertical milling as standard, but we have added the live spindle and C-axis features.
