Proline 5000W MPPT Solar Inverter
R 5,500
1 Photo(s)
7 months ago271 views
Ad Saved to My List
View and manage your saved ads in your account.
Share
WhatsApp
Facebook
Messenger
Twitter
Copy URL
Email
Report Ad
Report This Ad
Reason for Reporting
Email Address
(Required)
Message
(Optional)
Report Ad
By clicking "Report" you accept the Gumtree Terms and Conditions.
General Details
Description
1 Currently Available - Sealed unit.
Proline 5000VA 5000W Wall-Mount MPPT Solar Inverter
The Proline 5000VA 5000W Wall-Mount MPPT Solar Inverter (Model: PAXP5000) is a high-performance solar inverter designed for residential and commercial solar energy systems.
The wall-mount design of the inverter allows for easy installation on a suitable wall surface, saving valuable floor space and providing flexibility in system configuration.
Technical Specification
Input
Rated Power: 5000VA/5000W
Parallel Capability: Not Available
Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC ( Personal Computer) ; 90-280 VAC (Home Appliances)
Frequency Range: 50 Hz/60 Hz ( Auto Sensing )
Output
AC Voltage Regulation (Batt. Mode): 230VAC
Surge Power: 10000VA
Efficiency (Peak): 93%
Transfer Time: 10ms Personal Computer ; 20ms Home Appliances
Waveform: Pure Sine Wave
Battery (Not included)
Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 63 VDC
Solar Charge & AC Charger
Solar Charge Type: MPPT
Maximum PV Array Open Circuit Voltage: 500 VDC
Maximum PV Array Power: 5000 W
MPP Range @ Operating Voltage: 120-450 VDC
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 100A
Maximum Charge Current: 100A
Physical
Dimensions (D x W x H): 100 x 300 x 440
Weight: 10kg
Communication Interface: RS232 / USB / No BMS / No WIFI
Price R 5500
Slightly negotiable
Id Subtitle 1321779060
View More
Verified
RB
Selling for 14+ years
Total Ads96
Active Ads2
Seller stats
96Total Ads
7.49KTotal Views
Verified information
This indicates that Gumtree has taken reasonable steps to verify the authenticity of the Seller’s profile.
Read More
Read More
Identity (SA ID/Passport)
Mobile number
Email address
Make an Offer
Interested in this item? Send the seller an offer now.
Your offer is below the minimum offer price that the seller will consider.
Sorry, your ad is not sent successfully, please try again.
Please note that our Terms & Conditions and Privacy Notice are applicable. Gumtree accepts no liability regarding messages between buyers and sellers.
Offer Sent
Your offer of
has been sent to the seller.
Contact RB
Message
(4013)
Phone
(Optional)
Include my number in my message.
Send Message
By clicking "Send" you accept the Terms & Conditions and Privacy Notice and agree to receive newsletters and promo offers from us.
Related Ads
R 150
SavedSave
COB Work Light Solar & Usb
Features:
• High quality COB chip, high brightness
• COB light + flashlight
• Powered by solar panels, energy saving and enviro friendly, easy to use
• USB charging compatible notebook, tablet, car charging and other mobile
• Suitable for outdoor camping, emergency household lights
Specifications:
• Lamp beads:white light COB+5W LED
• Power:5W
• Voltage:5V
• Brightness:about 300 lumens
• Battery: Built-in lithium battery
• Power supply: rechargeable/ solar
• Lighting time: about 4-6 hours
• Gear position: (COB light + flashlight)
We freight nation wide
Overport Sparks Rd
Contact us today
☎️☎️0815029424
Invalid date
Medical Supplies
1
R 7,850
SavedSave
The product applies to diversified loads because its digital design, pure sine wave output and excellent overcurrent protection can withstand the loads with a large starting current; the product is provided with independent solar three-stage charge management to improve charge efficiency of its battery and realize a longer life; the product provides universal 5VDC USB output port and 12VDC output to be widely applied to small solar power generation occasions including families, schools, street monitoring, forest monitoring, industrial and mining enterprises, frontier defense, sea islands, pasturing areas, etc.
Features
Excellent performance because of an MCU intelligent control technology
A wide range of applicable loads because of pure sine wave AC output
Convenient and practical 5VDC USB output port and 12VDC output port
Solar array and battery connrnon-anode system input
Charge by mains supply for flexible configuration (optional function)
Overcharge protection and overdischarge protection for a longer battery life
LCD and LEDS for visualization of operation status of the equipment
Overall automatic protection and alarms Including AC output over load protection, short circuit protection, etc.
Specifications
INVERTER
Battery voltage: 24V
In-built battery specification: 100AH/12Vx2
Rated power: 2000W
Output voltage: 220VAC
Output frequency: 50 / 60Hz
Output waveform: Pure Sine Wave
SOLAR INPUT
Maximum photovoltaic voltage (VDC): 100V
Charge voltage(VDC): 35V-100V
Rated charge current(A): MPPT 30A
Maximum power(Wp): 800Wp
Voltage of overcharge protection(VDC): 28.4V
Voltage of overcharge recovery(VDC): 28.0V
Voltage of floating charge(VDC): 27.4V
DC OUTPUT
Voltage of high-voltage protection(VDC): 32V
Voltage of high-voltage recovery(VDC): 30.4V
Voltage of low voltage recovery(VDC): 25.2V
Voltage of low voltage protection(VDC): 22V
12VDC output port: DC ports ( MAX 2A))
Starting temperature of the exhaust fan: >45 C
Ambient temperature for operation: 0-40 C
Ambient temperature for storage: -25 - +55 C
Operation/storage conditions: 0-90% (no condensation)
What's in the box

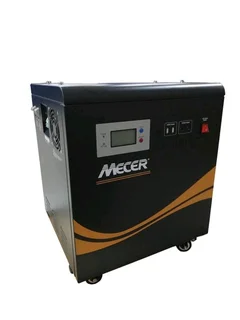

1 x Mecer 2Kw 24V 2x100A Battery
