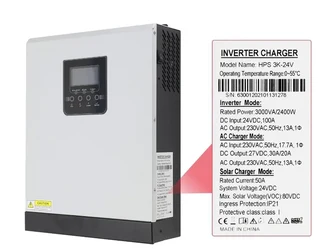

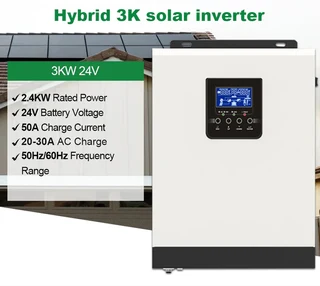

POWMR 3000VA/2400W Pure Sine Wave Hybrid Solar Inverter

MODEL: HPS-3K-24V

Rated Power

3000VA/2400W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280VAC (For Personal Computers)

90-280VAC (For Home Appliances)

Frequency Range

50Hz/60Hz (Autosensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC±5%

Surge Power

6000VA

Efficiency(Peak)

93%

Transfer Time

10ms (For Personal Computers)

20ms (For home Appliances)

Waveform

Pure sine wave

BATTERY&ACCHARGER

Battery Voltage

24VDC

Floating Charge Voltage

27VDC

Over charge Protection

30VDC

Maximum Charge Current

20A or 30A

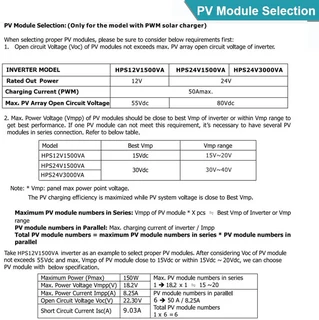

SOLARCHARGER

Charging Current

50A

Max PV Array Power

1200W

PWM Range @ Operating Voltage

30-32VDC

30-40VDC

Standby Power Consumption

2W

PHYSICAL

Dimension, D×W×H(mm)

100×272×355

305*272*100

Net Weight (kgs)

6.9

6.2

OPERATING ENVIRONMENT

Humidity

5%to95%RelativeHumidity(Non-condensing)

Operating Temperature

0℃-55℃

Storage Temperature

15℃-60℃

Package Contents: 1x 3KVA 24v Hybrid Inverter 1x User Manual 1x RS232 Communication cable ALSO NOTE: The 12 month warranty on this product is activated on condition that the inverter is installed by a certified installer and a Certificate of Compliance was issued for the installation. Should the product fail and proof of this can not be supplied, we will not be able to honor any warranty.
