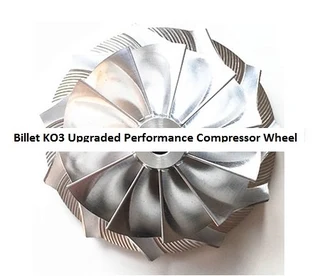

KO3 Turbo Upgraded Billet Compressor Wheel for VW / Audi

KO3 Turbo Upgraded Billet Compressor Wheel for VW / Audi

For added horsepower and torque – fit this upgraded Billet Compressor Wheel to your VW GTi, VW Turbo or Audi T – transform your KO3 to even higher performance specs than the KO4 turbo fitted on the VW Golf R, Audi S3 or Audi TTS.

High Performance 11+0 blades 41mm/51mm Aluminum 2024/Milling/ Billet compressor wheel

Size of this upgraded compressor wheel:

Inducer: 41mm

Exduder: 51mm

Tapered Tip: 56.08mm

Tip height: 5.43mm

Superback: 1.80mm

Overall height: 25.67mm

Bore size: 4.61mm (Shaft size)

Blade height: 19.69mm

11+0 blades

Super upgrade on the KO3 compressor wheel –

Size:

Inducer: 51.03mm

Exducer: 61.98mm

Tapered tip exducer: 66.13mm

Tip height: 4.6mm

Superback: 1.80mm

Overall height: 25.68mm

Bore size: 4.61mm

Blade height: 20.56mm

7+7 blades

NEW in Box

For reference, the following is the OEM compressor wheel size for VW/Audi KO3 Turbos:

KO3 - VW/Audi Models from 1997-2000

Inducer: 33.6mm

Exducer: 46mm

Tapered Tip: 3.7mm

Bore size: 4.61mm (Shaft size)

KO3S - VW/Audi Models from 2001 –

Inducer: 38mm

Exducer: 51mm

Tapered Tip 4.4mm

Bore size: 4.61mm (Shaft size)

KO4 - VW/Audi Models 015

Inducer: 35mm

Exducer: 50mm

Tapered Tip 3.7mm

Bore size: 4.61mm (Shaft size)
