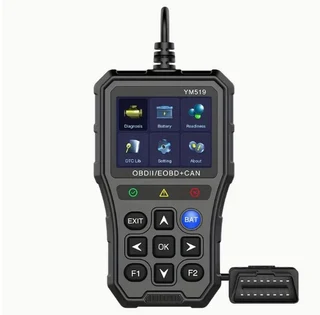

YM519 Fault Code Scanner OBD2 Code Reader Diagnostic Code Reader Check Engine System Battery Tester

YM519 Fault Code Scanner OBD2 Code Reader, Car Diagnostic Tool, Code Reader, Check Engine System and Battery Tester.

1. A new generation of UI interaction (picture overlay bottom + changeable themes + GPU Turbo faster response and faster display)

2. With TPU protective case.

3. New silicone buttons.

4. Three high brightness indicator lights

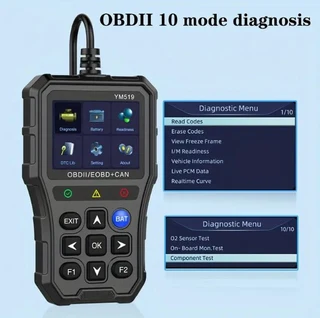

1. Support OBDII/EOOBD nine standard protocols to read the car engine fault code

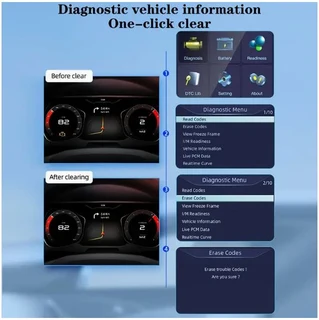

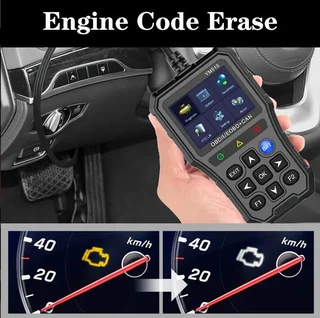

2. Clear the engine fault code

3. Freeze frame of automobile fault

4. I/M readiness status

5. Vehicle information

6. Automobile real-time data flow

7. Real-time curve of automobile data

8. Mode 6 test (component system test)

9. air Detector test

10. Parts test

11. Fault code query

12. Vehicle battery voltage reading

13. Vehicle battery voltage monitoring

14. Vehicle battery life assessment (exclusive features)

15. The product support 13 languages

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 251 Kbaud)
