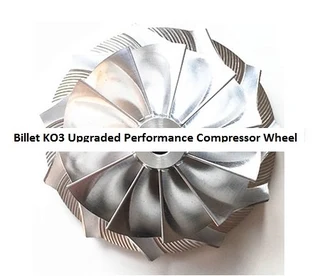

KO3 Turbo Upgraded Billet Compressor Wheel for VW / Audi
Contact f/price
Reason for Reporting
KO3 Turbo Upgraded Billet Compressor Wheel for VW / Audi
For added horsepower and torque – fit this upgraded Billet Compressor Wheel to your VW GTi, VW Turbo or Audi T – transform your KO3 to even higher performance specs than the KO4 turbo fitted on the VW Golf R, Audi S3 or Audi TTS.
High Performance 11+0 blades 41mm/51mm Aluminum 2024/Milling/ Billet compressor wheel
Size of this upgraded compressor wheel:
Inducer: 41mm
Exduder: 51mm
Tapered Tip: 56.08mm
Tip height: 5.43mm
Superback: 1.80mm
Overall height: 25.67mm
Bore size: 4.61mm (Shaft size)
Blade height: 19.69mm
11+0 blades
Super upgrade on the KO3 compressor wheel –
Size:
Inducer: 51.03mm
Exducer: 61.98mm
Tapered tip exducer: 66.13mm
Tip height: 4.6mm
Superback: 1.80mm
Overall height: 25.68mm
Bore size: 4.61mm
Blade height: 20.56mm
7+7 blades
NEW in Box
For reference, the following is the OEM compressor wheel size for VW/Audi KO3 Turbos:
KO3 - VW/Audi Models from 1997-2000
Inducer: 33.6mm
Exducer: 46mm
Tapered Tip: 3.7mm
Bore size: 4.61mm (Shaft size)
KO3S - VW/Audi Models from 2001 –
Inducer: 38mm
Exducer: 51mm
Tapered Tip 4.4mm
Bore size: 4.61mm (Shaft size)
KO4 - VW/Audi Models 015
Inducer: 35mm
Exducer: 50mm
Tapered Tip 3.7mm
Bore size: 4.61mm (Shaft size)
